Texas Instruments SN74LVC1G125-Q1 Automotive Snubber Gate

Texas Instruments SN74LVC1G125-Q1 Automotive Single Bus Buffer Gate is designed to operate from the 1.65V to 5.5VV CC voltage range. The SN74LVC1G125-Q1 buffer gates are single-wire drivers with three-state outputs. When the output enable (OE) input is high, the output is disabled. This CMOS device features high output drive capability while maintaining low static power dissipation over a wide V CC operating range.

The SN74LVC1G125-Q1 automotive single bus buffer gate is available in a variety of packages, including a small DRY package measuring 1.45mm × 1.00mm.

CHARACTERISTIC

The following properties are AEC-Q100 qualified:

Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range

Device Human Body Model (HBM) ESD Classification Level 2

Device Charged Device Model (CDM) ESD Classification Level C5

Available in a small 1.45mm DRY package with 0.5mm pitch

Supports 5V VCC operation

Overvoltage-tolerant input can accept 5.5V voltage

Supports down-translation to V CC

tpd: 3.7ns (at 3.3V, max.)

Low Power Consumption: 10µA Maximum ICC

Output Drive ±24mA at 3.3V

Ioff supports live insertion, partial shutdown mode, and backdrive protection

Latch-up performance exceeds 100mA

Compliant with JESD 78 Class II

APPLICATION

Compliant with automotive application standards

Increased digital signal drive strength

Redrives Square Wave Signals Up to 100MHz

Enables or disables digital signals with a high-impedance shutdown state

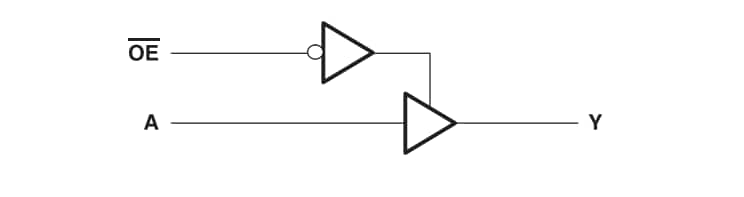

FUNCTION DIAGRAM
